SPECIFICATIONS

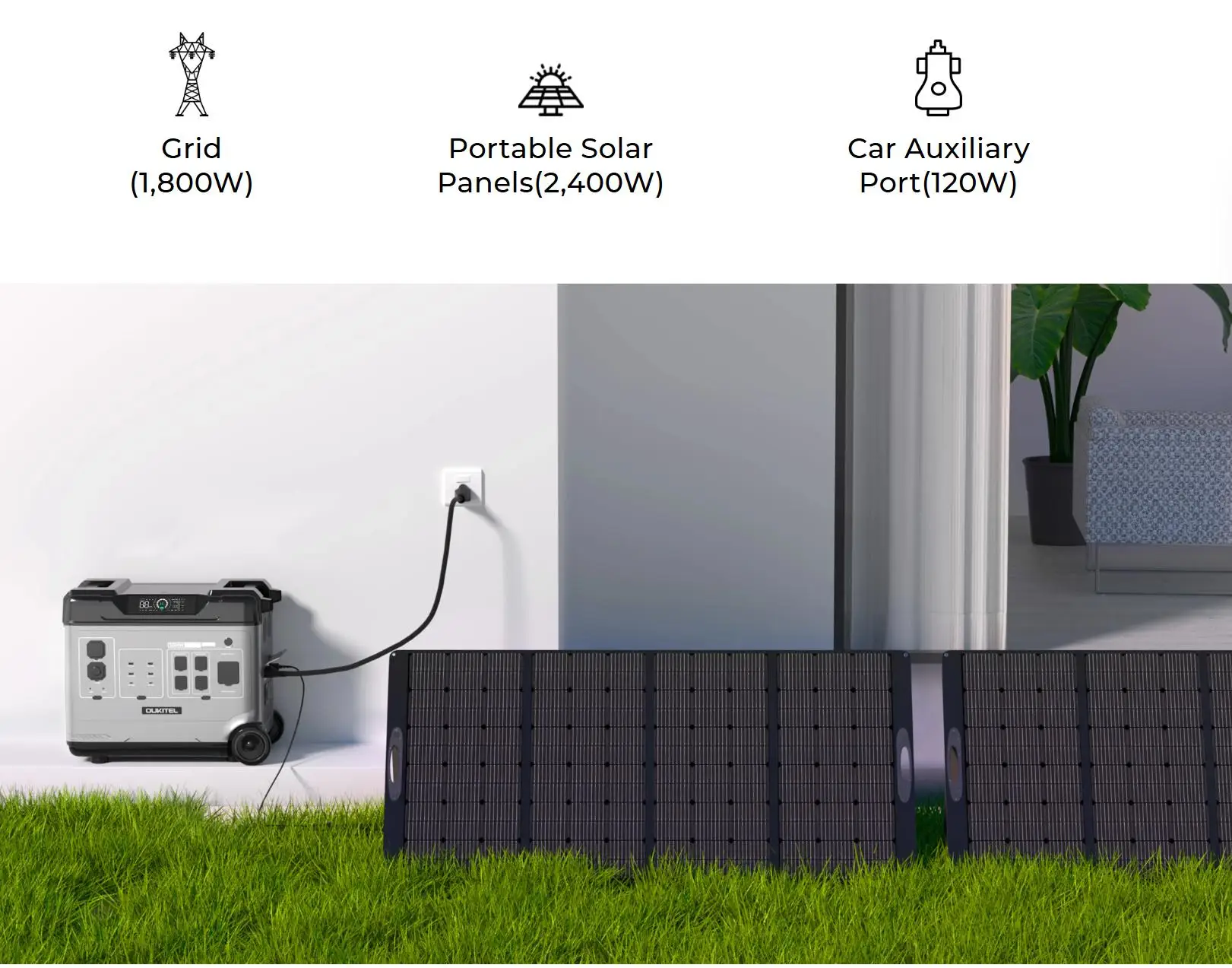

AC + Solar Charging(Max.2800W): 80% - 1 h 25 min

AC Charging Input: 1500W - 2000W

AC Charging(Max.1800W): 80% - 2 hrs 29 min

AC Output- Area 1: 2 Outlets AC120Vac 20A MAX, 2500W MAX

AC Output-3 Split phase: 1* Outlet, AC120Vac/240Vac, 30A MAX; only 120V, 2500W MAX; only 240V,5000W MAX

AC Output-Area 2: 2 Outlets AC120Vac 20A MAX, 2500W MAX

Application: Solar Power Storage

Battery Safety Systems: BMS Management

Battery Type: LiFePO4

Brand Name: OUKITEL

Capacity: 5120Wh(51.2V 100Ah)

Car Charging: 12V/8A,48V/10A

Certification: CE,FCC,RoHS

Certifications: CE,FCC,PSE,UN38.3,EMC,LVD,RoHS,MSDS

Cooling Strategy: 6*Fans

DC Output Ports: 2*DC5521(12V/3A, 36W Max each) 1*RV Aviation Port(48V/15A, 720W Max, GX16 2-Pin) 1*Car Charging Port(12V/10A, 120W Max)

Display screen: Yes

High-concerned chemical: None

Life Cycles: 5000+ Cycles to 80% Original Capacity

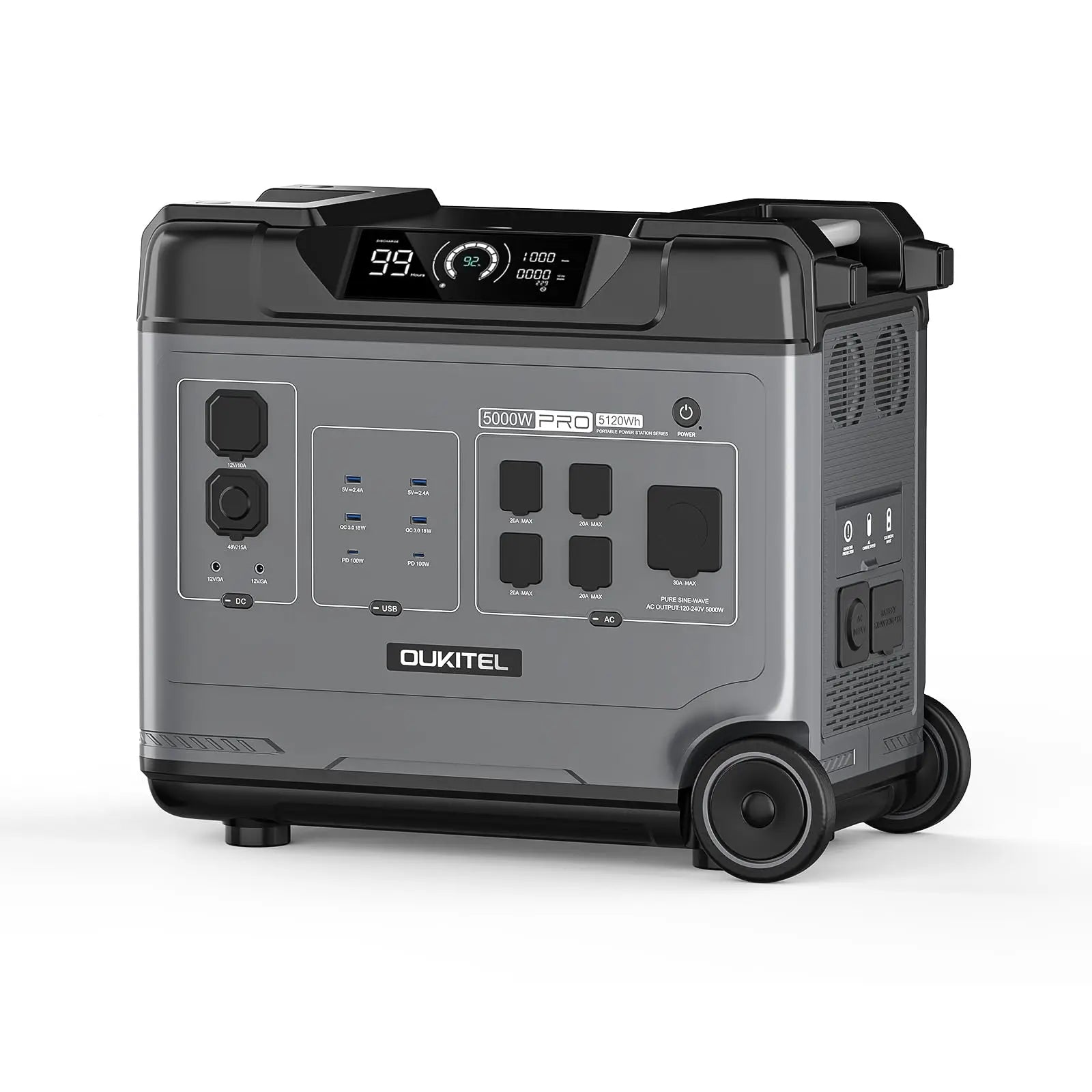

Model Number: BP5000 Pro Max

Net Weight: > 50Kg,121.25lbs(55kg)

Nominal Capacity: 5120Wh

Operating Temperature: 32℉-104℉/0℃-40℃

Origin: Mainland China

Output Wave: Pure Sine Wave

Protection: Rescue & Short-circuit,Over-current, Over-voltage, Low- voltage, Over-load, Over-temperature ,Over-charge

Rated Power: 5000W

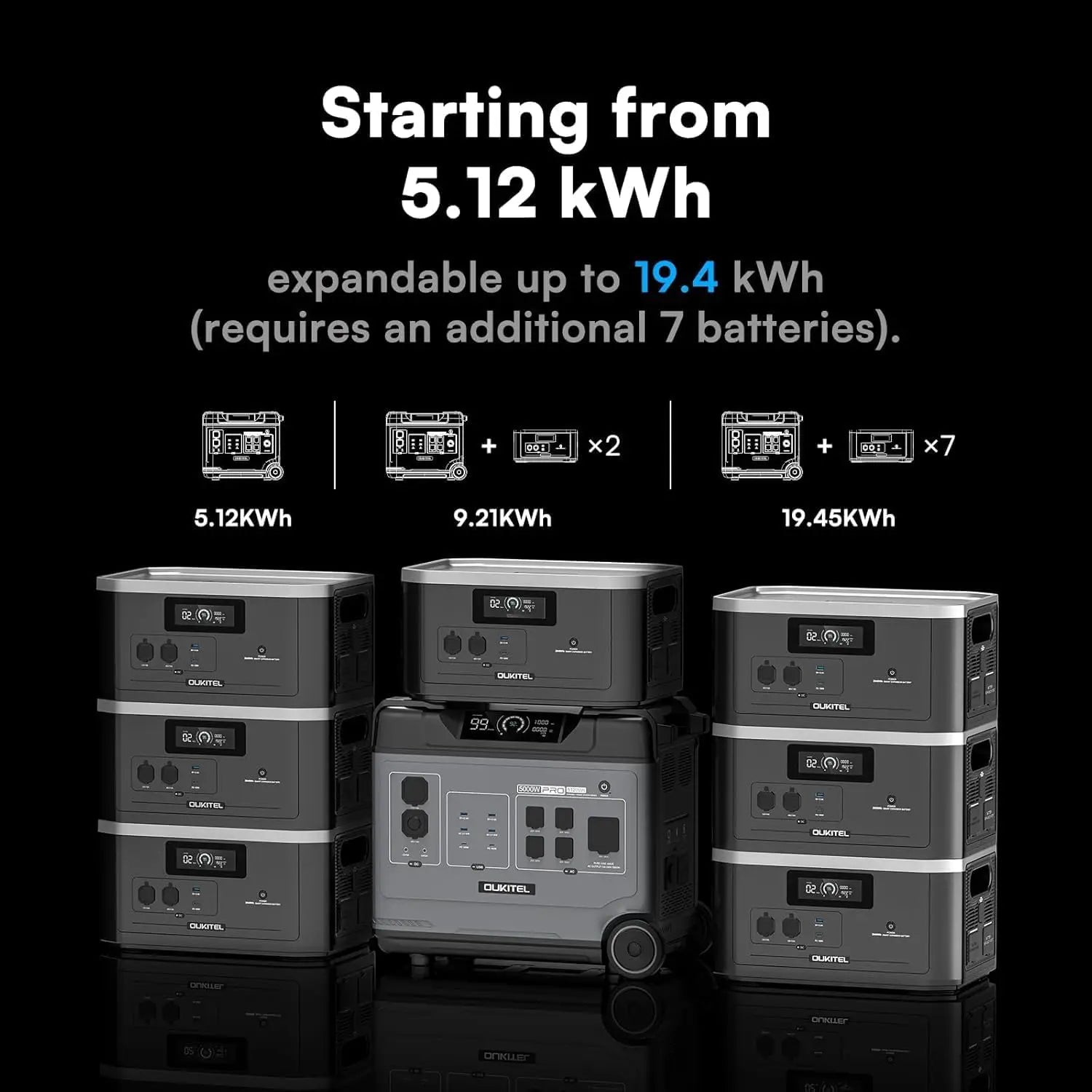

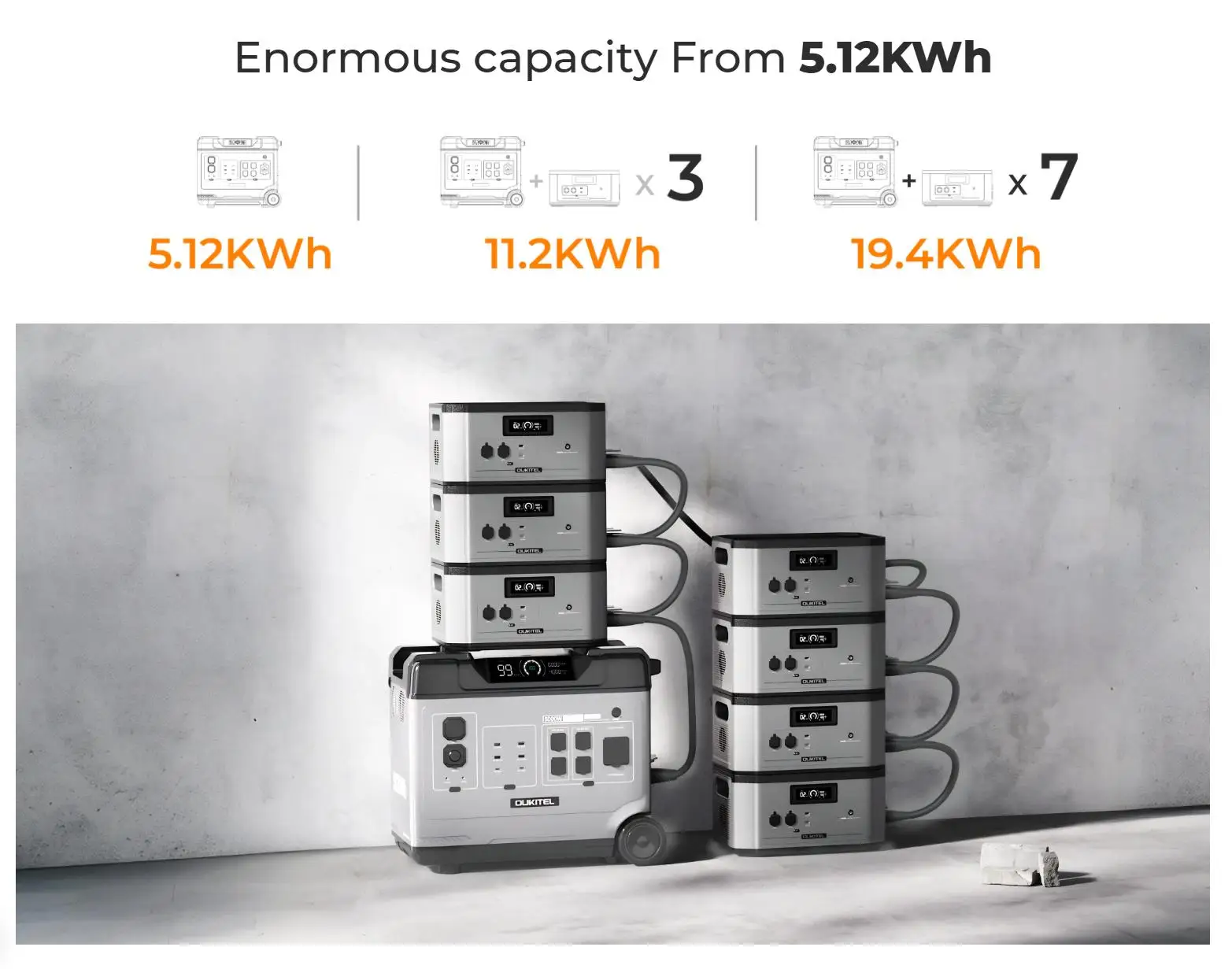

Scalability: Expand Up To 7*B2000

Set Type: Charger Sets

Size: L550*W299*487

Solar Charging Input: 500W - 1000W

Solar Charging(Max.1000W): 100% - 4 hrs 30 min

Storage Temperature: -4℉-104℉/-10℃-40℃

Surge Power: 10000W

Type: LiFePO4

UPS Rated Power: 1500W(100V)/1800W(120V)/3600W(240V),15A MAX

UPS Start Time: UPS Start Time < 10 ms

USB-A Port: 2*12W (5V/2.4A) USB-A

USB-C Port: 2* PD100W(5V3A;9V3A;12V3A;15V3A;20V5A)

USB-QC3.0: 2* 18W (5V/3A ; 9V/2A; 12V/1.5A)

Warranty: 3 years
